Real-Time and Simulated Navigation

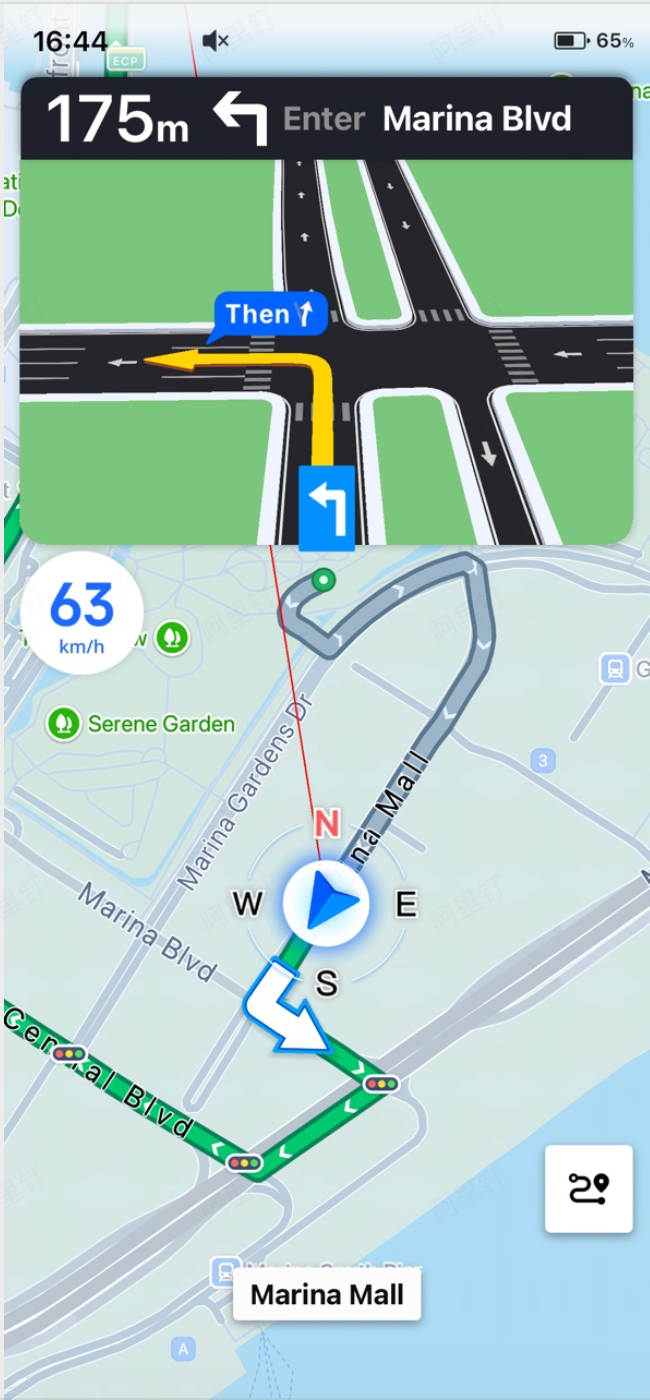

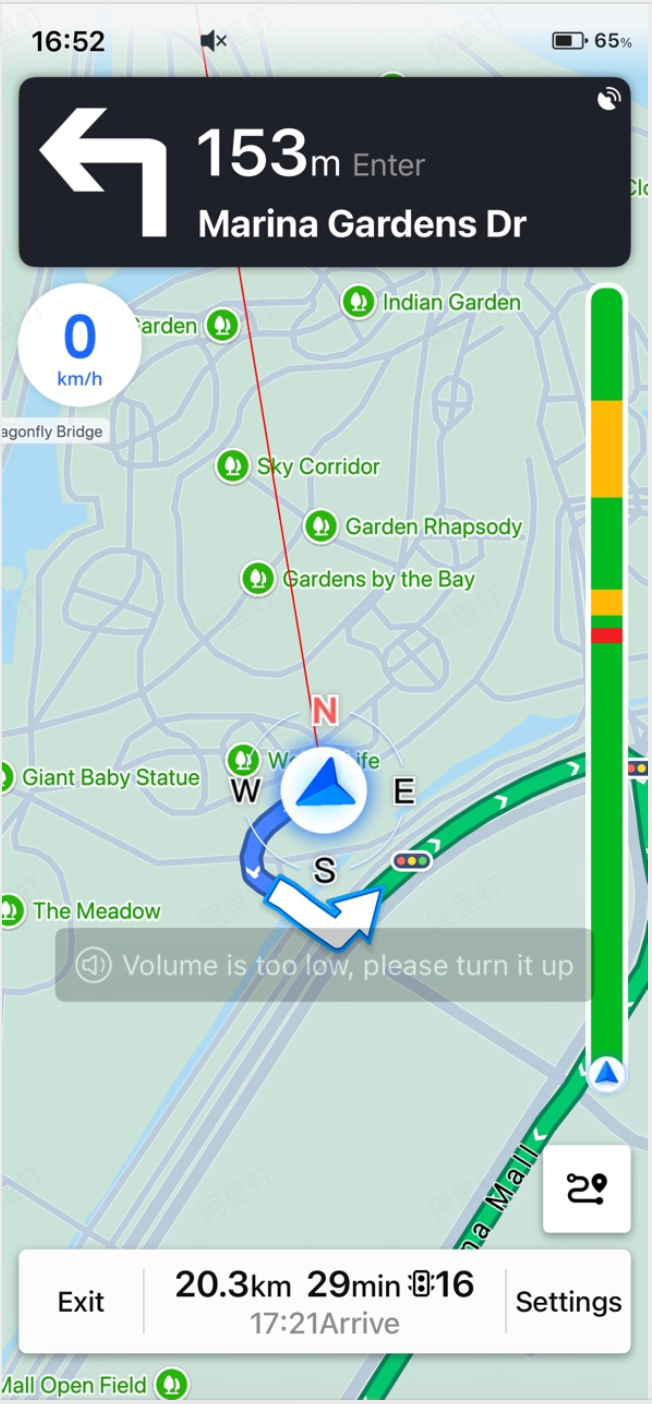

Real-time navigation uses continuous positioning data to drive the navigation experience during an actual trip. After a route is successfully calculated, you can begin real-time navigation. The SDK provides a default navigation interface, AMapNaviDriveView, as shown in the images below.

Usage

Follow these steps to implement real-time navigation.

Step 1: Create an AMapNaviDriveView

- (void)initDriveView {
    if (self.driveView == nil) {
        self.driveView = [[AMapNaviDriveView alloc] initWithFrame:self.view.bounds];
        self.driveView.autoresizingMask = UIViewAutoresizingFlexibleWidth|UIViewAutoresizingFlexibleHeight;
        [self.driveView setDelegate:self];

        [self.view addSubview:self.driveView];
    }
}

Step 2: Create an AMapNaviDriveManager

After creating the AMapNaviDriveManager, add the AMapNaviDriveView as a data representative so it can receive real-time navigation data.

- (void)initDriveManager {
    [[AMapNaviDriveManager sharedInstance] setDelegate:self];

    // Add the driveView as a data representative to receive navigation guidance data
    [[AMapNaviDriveManager sharedInstance] addDataRepresentative:self.driveView];
}

Step 3: Calculate a Route

For more information, see:

- Driving Route Planning

- Walking Route Planning

- Cycling Route Planning

Step 4: Start Real-Time Navigation

In the route calculation success callback, start real-time navigation.

- (void)driveManager:(AMapNaviDriveManager *)driveManager onCalculateRouteSuccessWithType:(AMapNaviRoutePlanType)type {
    NSLog(@"onCalculateRouteSuccess");

    // Start GPS navigation after route calculation succeeds
    [[AMapNaviDriveManager sharedInstance] startGPSNavi];
}

Step 5: Destroy the `AMapNaviDriveManager` Singleton When Exiting the Page

- (void)dealloc {
    [[AMapNaviDriveManager sharedInstance] stopNavi];
    [[AMapNaviDriveManager sharedInstance] removeDataRepresentative:self.driveView];
    [[AMapNaviDriveManager sharedInstance] setDelegate:nil];

    BOOL success = [AMapNaviDriveManager destroyInstance];
    NSLog(@"Singleton destroyed successfully: %d", success);
}

Simulated Navigation

Simulated navigation is intended for indoor testing only. It helps you become familiar with the navigation features, such as previewing traffic conditions and camera information along a planned route.

Important: Do not use simulated navigation for actual navigation.

The implementation steps for simulated navigation are nearly identical to those for [real-time navigation](/api/ios-navi-sdk/guide/navigation-map/gps-navi#t1). The only difference is that, in the route calculation success callback, you call the startEmulatorNavi method instead of startGPSNavi.

- (void)driveManager:(AMapNaviDriveManager *)driveManager onCalculateRouteSuccessWithType:(AMapNaviRoutePlanType)type {
    NSLog(@"onCalculateRouteSuccess");

    // Start simulated navigation after route calculation succeeds
    [[AMapNaviDriveManager sharedInstance] startEmulatorNavi];
}
