Driving Routing

This feature uses the Map SDK's search functionality. To use it, import the search library (AMapSearchKit.framework) into your project. For more information, see the SDK download page.

Driving route planning is commonly used to estimate driving costs and plan routes in advance.

Before You Begin

Before you start, make sure you have completed the following steps:

1. Import the required header files.

2. Configure your API key.

Step 1: Import Header Files

Import the AMapFoundationKit.h and AMapSearchKit.h header files.

#import <AMapFoundationKit/AMapFoundationKit.h>
#import <AMapSearchKit/AMapSearchKit.h>

Step 2: Configure Your API Key

You must add your API key to use the search functionality.

For Search Library (AMapSearchKit.framework) v4.x:

You need to import the base SDK (AMapFoundationKit.framework). See the SDK download page for more information.

[AMapServices sharedServices].apiKey = @"Your API Key";

For Search Library v3.x or earlier:

We recommend updating to the latest version as soon as possible.

[AMapSearchServices sharedServices].apiKey = @"Your API Key";

Create a Route Plan

Follow these steps to create a driving route plan.

Step 1: Define the Search API Object

Define the main search object, AMapSearchAPI, and adopt the AMapSearchDelegate protocol.

Step 2: Initialize the Search API Object

Initialize the AMapSearchAPI object and set its delegate.

self.search = [[AMapSearchAPI alloc] init];
self.search.delegate = self;

Step 3: Set Route Planning Parameters

The request parameter class is AMapDrivingRouteSearchRequest. The following table describes its key properties.

Name	Meaning	Rule Description	Required	Default
origin	Starting point coordinate	Set using AMapGeoPoint.	Yes	-
destination	Destination coordinate	Set using AMapGeoPoint.	Yes	-
waypoints	Waypoints	Supports up to 6 waypoints.	No	-
avoidpolygons	Avoidance polygons	Supports up to 32 polygons, each with up to 16 points.	No	-
avoidroad	Avoidance road	When set, the avoidpolygons parameter is ignored.	No	-
strategy	Route planning strategy	0: Speed first. See the Driving Strategy Reference for details.	No	0

self.startAnnotation.coordinate = self.startCoordinate;
self.destinationAnnotation.coordinate = self.destinationCoordinate;

AMapDrivingRouteSearchRequest *navi = [[AMapDrivingRouteSearchRequest alloc] init];

navi.requireExtension = YES;
navi.strategy = 5;

/* Starting point. */
navi.origin = [AMapGeoPoint locationWithLatitude:self.startCoordinate.latitude
                                       longitude:self.startCoordinate.longitude];
/* Destination. */
navi.destination = [AMapGeoPoint locationWithLatitude:self.destinationCoordinate.latitude
                                            longitude:self.destinationCoordinate.longitude];

Step 4: Initiate the Route Search

[self.search AMapDrivingRouteSearch:navi];

Step 5: Handle the Response

When the search is successful, the onRouteSearchDone callback is triggered. In this callback, parse the AMapRouteSearchResponse object to get the route data and display it on the map.

Notes:

1. Parse the response object in the callback to get the driving route.

2. The response.route.paths property returns a list of AMapPath objects. For detailed information about a driving route, refer to the AMapPath class.

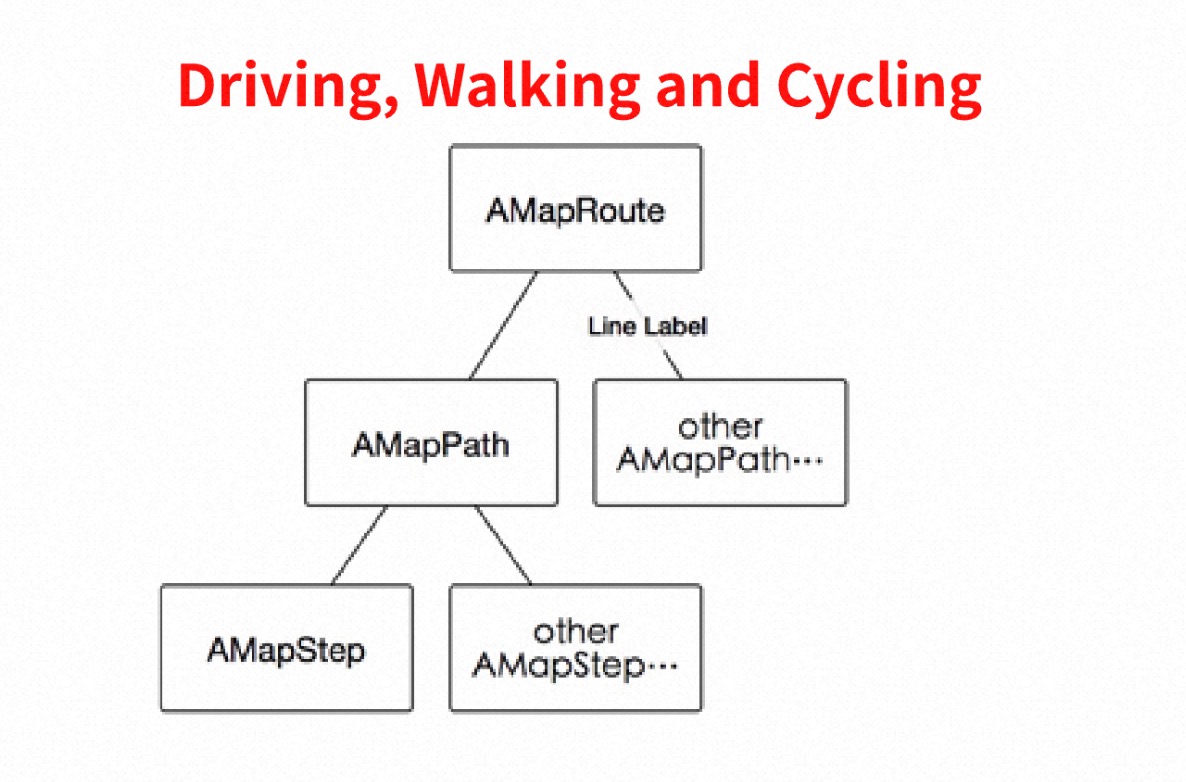

3. The structure of the route planning result is shown in the following diagram. Use this structure to parse the result and display the route accurately.

Driving route planning result structure diagram showing the AMapRoute data model hierarchy for iOS

- (void)onRouteSearchDone:(AMapRouteSearchBaseRequest *)request response:(AMapRouteSearchResponse *)response
{
    if (response.route == nil)
    {
        return;
    }

    // Parse the response to get the route.
    // response.route.paths contains a list of AMapPath objects.
}

Error Handling

If the search fails, the didFailWithError callback is triggered. Use this callback to get the reason for the failure.

- (void)AMapSearchRequest:(id)request didFailWithError:(NSError *)error
{
    NSLog(@"Error: %@", error);
}

Driving Strategy Reference

The following table lists the available driving strategies. Use the strategy parameter in AMapDrivingRouteSearchRequest to specify one.

Strategy ID	Description
0	Speed first. Ignores current traffic conditions and returns the route with the shortest travel time. This route may not be the shortest in distance.
1	Cost first. Avoids toll roads and returns the route with the shortest travel time.
2	Distance first. Ignores traffic conditions and returns the shortest route in distance. This route may pass through small roads or residential areas.
3	Speed first. Avoids expressways (e.g., Jingtong Expressway). Due to strategy updates, it is recommended to use strategy 13.
4	Avoids congestion. The route may be longer and take more time.
5	Multi-strategy. Calculates routes using speed first, cost first, and distance first simultaneously. Depending on traffic conditions, one to three route plans may be returned.
6	Speed first. Avoids highways but may include other toll roads.
7	Cost first. Avoids highways and all toll roads.
8	Avoids congestion and toll roads. May include highways. Considers traffic conditions to avoid congested routes, but the route may be longer and take more time.
9	Avoids congestion and toll roads. Does not use highways.
10	Avoids congestion, shorter distance, and shorter travel time. This is the same as the default strategy in the AMAP app (when no options are selected).
11	Returns three results: shortest time, shortest distance, and avoids congestion. Due to better algorithms, it is recommended to use strategy 10.
12	Considers traffic conditions and avoids congestion. This is the same as the "Avoid Congestion" strategy in the AMAP app.
13	Does not use highways. This is the same as the "Avoid Highways" strategy in the AMAP app.
14	Plans a route with low or no toll costs. This is the same as the "Avoid Tolls" strategy in the AMAP app.
15	Considers traffic conditions, avoids congestion, and does not use highways. This is the same as the "Avoid Congestion & Avoid Highways" strategy in the AMAP app.
16	Avoids highways and plans a route with low or no toll costs. This is the same as the "Avoid Tolls & Avoid Highways" strategy in the AMAP app.
17	Avoids congestion and plans a route with low or no toll costs. This is the same as the "Avoid Congestion & Avoid Tolls" strategy in the AMAP app.
18	Avoids congestion, plans a route with low or no toll costs, and avoids highways. This is the same as the "Avoid Congestion & Avoid Tolls & Avoid Highways" strategy in the AMAP app.
19	Prefers highways. This is the same as the "Highway First" strategy in the AMAP app.
20	Prefers highways and avoids congestion. This is the same as the "Avoid Congestion & Highway First" strategy in the AMAP app.
